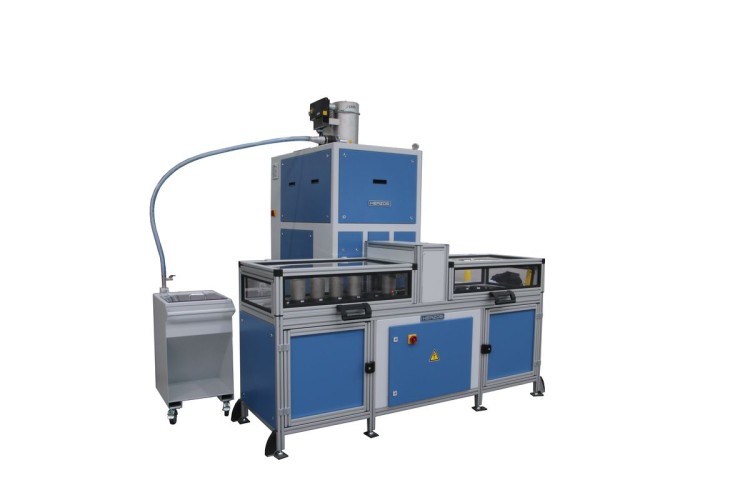

HP-M: Automatic pulverizing mill

AREA OF APPLICATION

Use
Fine grinding of sample material for x-ray fluorescence spectroscopy, diffracotmetry and other analytical procedures

Material
Different materials, raw meal, clinker, cement, slag, ores, oxidic material, ferroalloys (feed size 5 mm)

Operation mode
Automatic, standalone, standalone with magazine, linear automation, robot automation

ADVANTAGES

Robust design – long service life

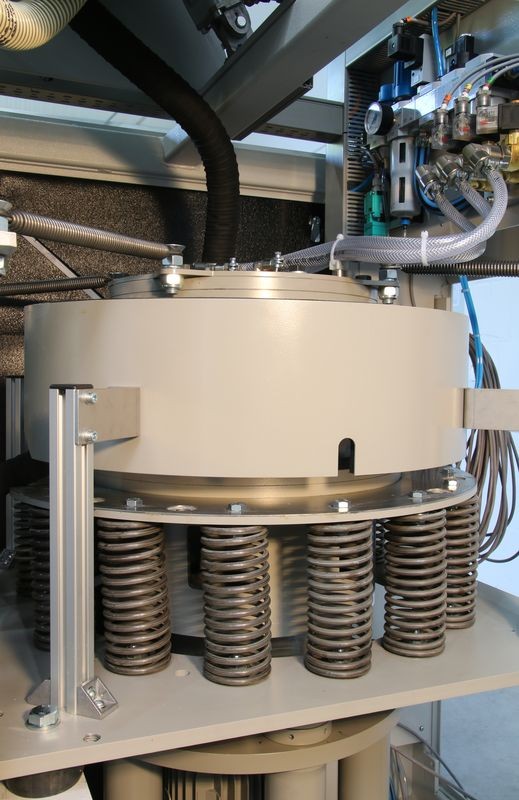

HERZOG HP-M series pulverizing mills are suitable for grinding a wide variety of minerals such as cement raw meal, clinker, cement, slag, ores, oxides, and ferroalloys. The high RPM of the drive motor guarantees short grinding processes even with hard materials. The motor speed is steplessly adjustable between 700 rpm and 1.500 rpm. The robust construction with, for example, dual bearing support for the eccentric shaft ensures long service life.

Effective avoidance of cross contamination

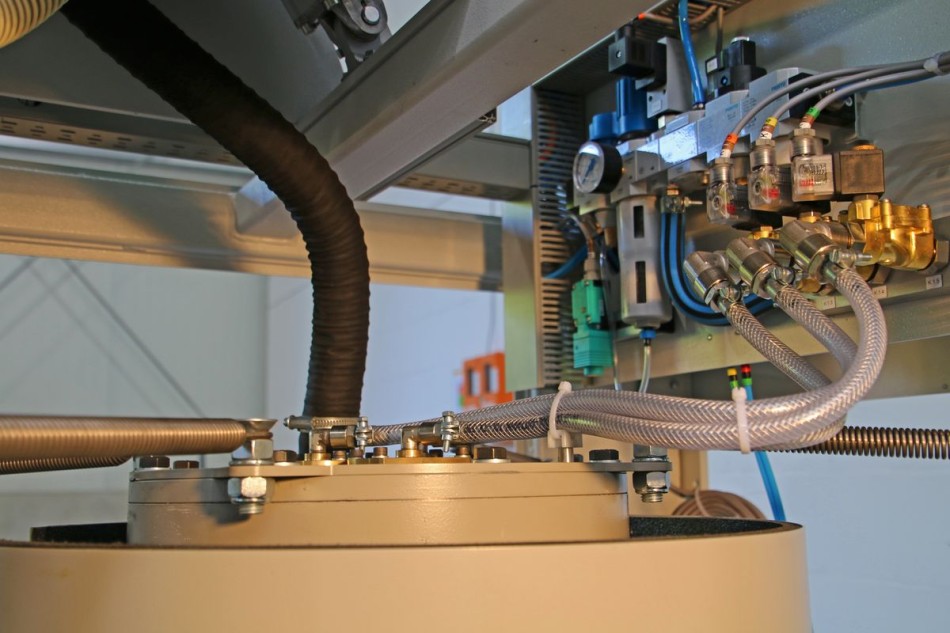

After pulverizing the grinding vessel is automatically emptied and the ground material is made available at the discharge point. Three automatic cleaning features namely compressed air, sand cleaning (option) and wet cleaning (option) allow a sufficient material removal. Using the different cleaning functions, cross contamination can be reduced to a low ppm-level. Furthermore, spoon sampling (option) during the material input provides the possibility to pre-contaminate the grinding with a subsequent sample.

Material feed size: < 5 mm

Feed volume: 100 ccm

Fully automatic sample preparation
