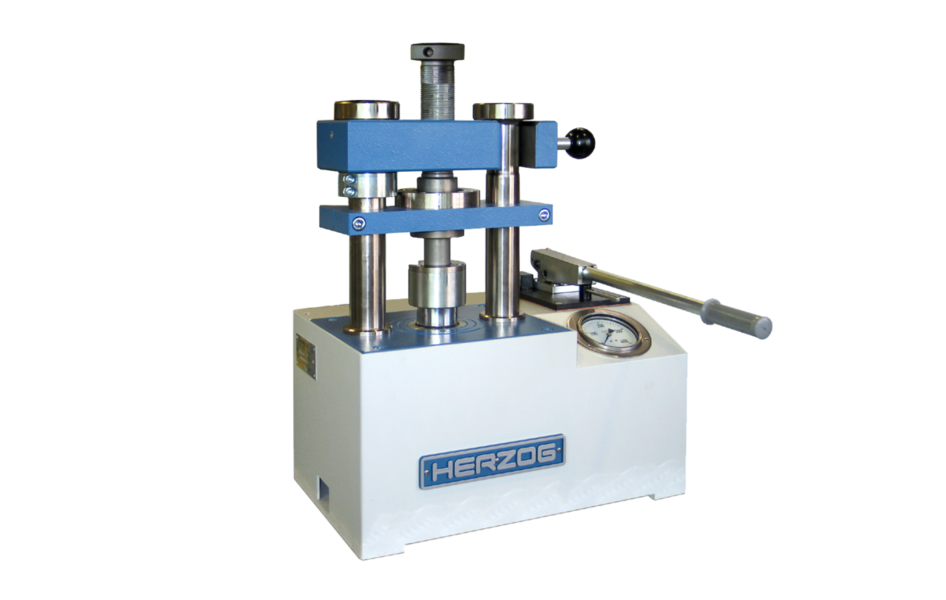

TP 20, TP 40, T 60: Manual pellet press
The economic solution for pellet preparation- proven technology at the highest quality standard
Takk for interessen. Vi tar kontakt med deg innen kort tid
AREA OF APPLICATION
Use
Preparation of pellets in steel rings (40 or 51. 5 mm diameter), aluminium cups or free pressing for x-ray fluorescence spectroscopy
Material
Different materials, raw meal, clinker, cement, slag, ores, oxidic material, ferroalloys (feed size 100µm)
Operation mode
Manual
ADVANTAGES
Flexibility
Pellets can be pressed into steel rings or into aluminum cups. Furthermore, pressed pellets can be produced by free pressing. For each type of pellet, the TP can be equipped with the proper pressing tool.
Economic solution
Due to its low level investment and maintenance costs as well as the long service life, the TP is the perfect solution for the economic operation of your laboratory.
Easy handling
Each tool can be changed very easily. The hydraulic pump is operated by a hand lever. The direction of movement of the plunger is reversed by switching over the valve to permit simple access to the dies installed.
The threaded spindle serves as a counter-bearing to absorb the compacting pressure and to reduce the no-load stroke.
Pellets: Steel rings (40 mm, 51.5 mm), aluminium cups, free pressing
Max pressure force: 200 kN/ 400 kN / 600 kN
Manual sample preparation. Manual cleaning
